Classification by Transfer Processes b Storage Type Heat Exchanger Regenerative Heat Exchanger In a storage type exchanger both fluids flow alternatively through the same flow passages and hence heat transfer is intermittent. The heat transfer surface or flow passages is generally cellular in structure and is referred to as a matrix or.

Heat Exchanger Shell And Tube Heat Exchanger

Plain longitudinally finned etc.

Types of shell and tube heat exchanger ppt. A 1-2 shell-and-tube heat exchanger is illustrated in Figure 519. An odd number of tube passes is seldom used except the 1-1 exchanger. Httpsbitly2AjGaf1 HeatExchangerTubes MarketAnalysis The probable scenario is expected to grow by a xx in 2020 and the revenue will be xx in 2020 from US 9987 million in 2019.

Rear-end head shell-and-tube heat exchanger types P S T and W incorporate a floating rear tubesheet. Bell-Delaware Method complex method Shell side flow is complex combines crossflow and baffle window flow as well as baffle-shell and bundle-shell bypass streams and other complex flow patterns Five different streams are identified. Pillow Plate Heat Exchanger.

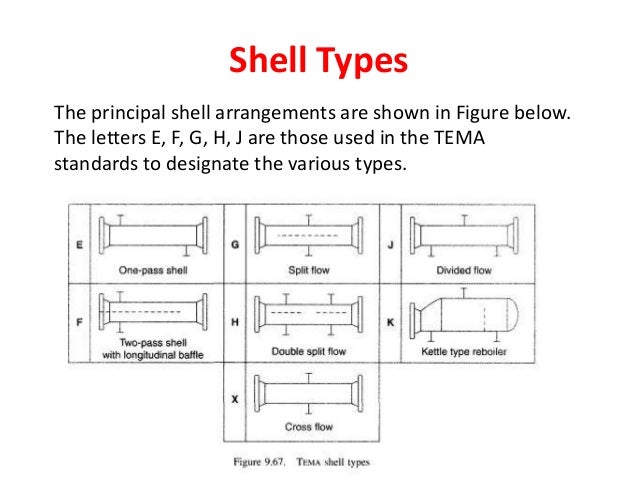

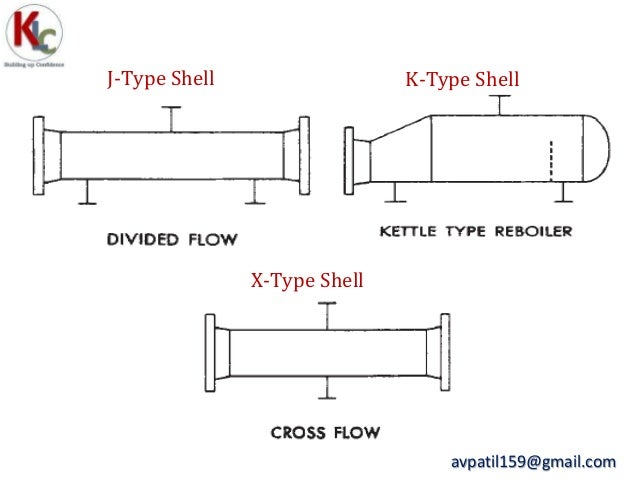

Shell Types TEMA E-type on which most design methods are based although these may be adapted for other shell types by allowing for the resulting velocity changes. TypeSegmental single cut baffles are the most common Presentation on Heat Exchangers Shell baffles. Heat Exchanger Tubes Market Size Status and Forecast 2020-2026 - Download free PDF Sample.

Its relationship with straightforward solidness a quality that applies not simply to the product offering but rather to Vitality Exchange as an organization itself it supplies Finned tubes manufacturer in Saudi Arabia. Types of Shell and Tube Heat Exchanger U-Tube Heat Exchanger Straight-Tube 1-Pass Straight-Tube 2-Pass Floating Head shell and tube heat exchanger 8. 10 Shell-and-tube heat exchangers are described based on the number of passes the shell-side and tube-side fluids must undergo.

In which the first number signifies the number of passes for the shell-side fluid and the second number refers to the tube-side fluid. TEMA F-type has a longitudinal baffle giving two shell passes and this provides an alternative arrangement to the use of two shells required in order to cope with a close temperature approach or low shell-side flow rates. The most commonly used heat exchangers areShell Tube heat exchangerAir-cooled heat exchangerPlate type heat exchangerSpiral heat exchangerDouble pipe heat.

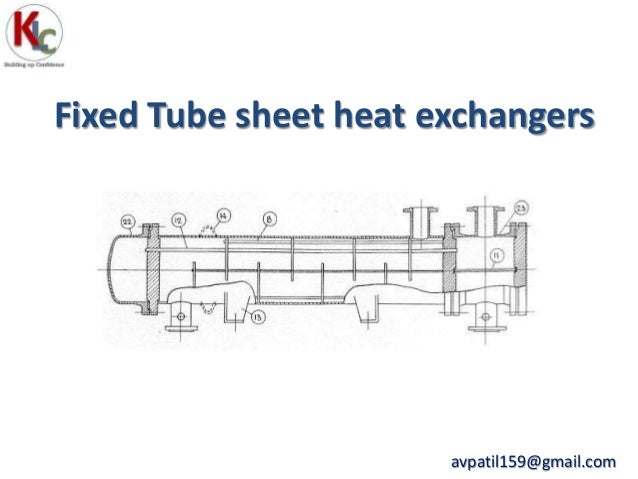

Direct heat transfer equipments cooling towers What is the difference. Straight-Tube 1-Pass 10. Shell and Tube Heat Exchangers ConstructionFixed Tube-sheet typeU-tube typeFloating Head type 14.

Shell and tube heat exchangers are typically used for high-pressure applications with pressures greater than 30 bar and temperatures greater than 260 C. Straight-Tube 2-Pass 11. Adiabatic Wheel Heat Exchanger.

Plate Fin Heat Exchanger. The streams can be heated or. Shell Tube Heat Exchangersq Shell tube type heat exchangers are built of tubes round or rectangular in general mounted in shells cylindrical rectangular or arbitrary shapeq Many variations of this basic type is available.

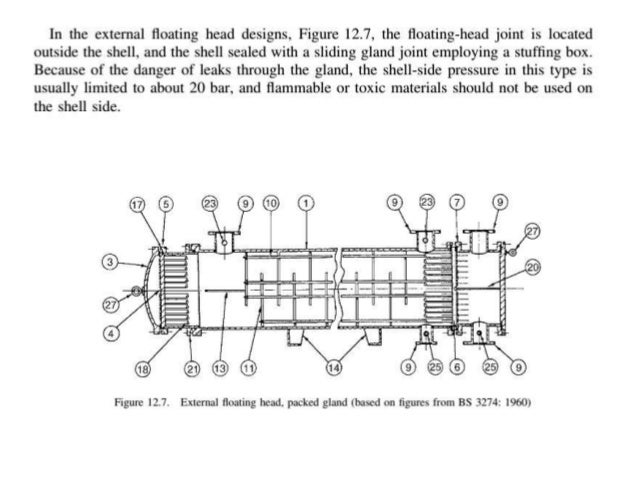

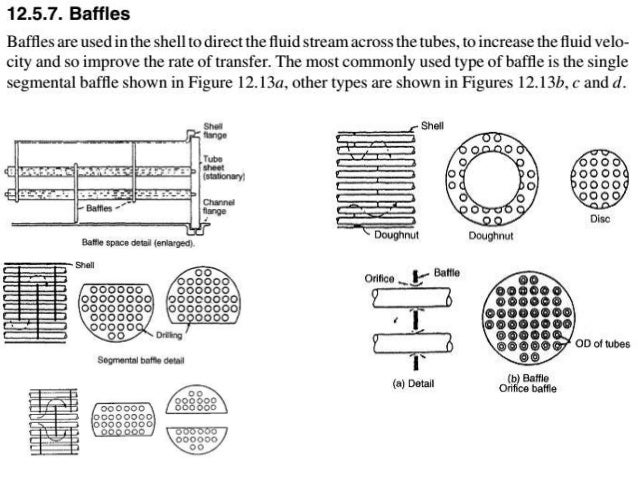

782017 Heat Transfer 7 8. Floating Head Shell and Tube Heat Exchanger 12. -Type Longitudinal Flow Baffles used in a two- pass shell Impingement Baffles used for protecting bundle when entrance velocity is high Orifice Baffles Single segmental Double segmental Disk and doughnut baffles Presentation on Heat Exchangers HEAT EXCHANGER COMPONENTS Tie rods.

The market size of Heat Exchanger Tubes 3900 will reach xx in 2026 with a CAGR of xx from 2020 to 2026. Typical Shell-and-Tube Heat Exchanger. Shell-and-tube heat exchangers can have multiple passes such as 1-1 1-2 1-4 1-6 and 1-8 exchangers where the first number denotes the number of the shells and the second number denotes the number of passes.

Indirect heat transfer equipments heat exchangers heaters coolers vaporizers condensers evaporators cooler condenser boilers waste heat boiler chiller 2. U-Tube Heat Exchanger 9. Exchangers are listed as 1-1 1-2 2-4 etc.

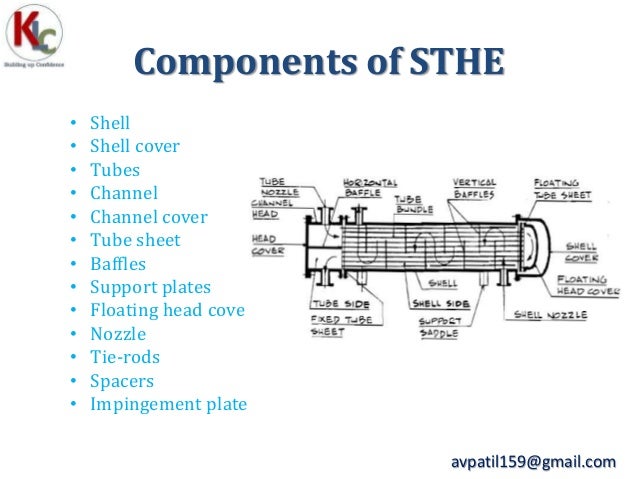

They are used to heat streams and to cool streams. Heat Exchangers Heat exchangers are used to transfer heat from one stream to another. 782017 Heat Transfer 8 Shell Tube Heat Exchanger Shell and tube heat exchangers consist of a series of tubes.

Types of heat transfer equipments 1. The most common TEMA shell type is the E shell as it is most suitable for most industrial process cooling applications. A set of tubes is called the tube bundle and can be made up of several types of tubes.

Leakage through tube. While each type offers a slightly different design any floating tubesheet design generally will be more costly than the removable U-tube or straight-tube fixed tubesheet designs. A B C E and F Bell-Delaware method takes into account the leakage and bypass streams most reliable method for shell side B-stream is the main stream others reduce it and change shell side temperature profile thus decrease h A.

For example the TEMA-F shell design provides for a longitudinal flow plate to be installed inside the tube bundle assembly. Front head typeA-typeB-typeBAChannel and removable coverBonnet integral cover. Plate Heat Exchanger.

However for certain applications other shells offer distinct advantages. Types of Heat Exchangers Shell and Tube Heat Exchanger. Heat Exchanger Manufacturer - Finned Tube Suppliers - Dolphin Heat Transfer is an entire line of Finned tubes manufacturer in UAE heat exchangers and heat exchanger parts.

Removable-Bundle Floating Tubesheet Types.
